The
Derating Aalysis software module is used to analyze the overstress of components under current temperature conditions. The module provides a tool to define Derating curves and identify
overstressed components, i.e., those working under stress exceeding the specified rating value. Rating, or maximum rated stress, is the specified value of temperature, power, voltage or current that define the absolute maximum stress limits. Exceeding these values creates a high probability of part damage/failure.

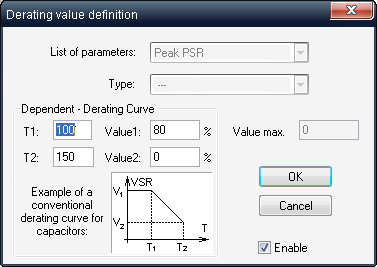

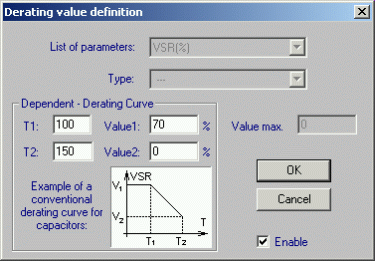

Derating parameter definition
The maximum rating is specified in the part specifications or in standard for this type of part. It is a well known practice in many companies to define limit values of stress for various components as a function of temperature. These limits, "Derating curves", are part of the company policy of component usage. A report created by the Derating Anaysis module includes all components in the selected part of the system, or only the overstressed ones. Derating reports with indication of overstressed parts.
Derating Module Features
• Intended for electronic designers
• Common database with R&M prediction
• User-definable
Derating Guidelines
• Clear indication of overstressed parts in reports
