FRACAS

FavoWeb™ is ALD's third generation, web based and user configurable Failure Reporting, Analysis and Corrective Action System (FRACAS) that captures information about equipment or the processes throughout its life cycle, from design, production testing, and customers support.
FavoWeb was adopted by world leading organizations who have been able to implement for the first time ever, a FRACAS application which seamlessly communicates with any given ERP system (SAP, ORACLE, MFGpro etc), while proving a user friendly, flexible yet robust failure management, analysis and corrective action platform.

FavoWeb FRACAS Features:
Full web-base application
User Permission Mechanism – complies with ITAR requirements
Flexible, user configurable application
Seamless communication with ERP/PDM/Excel/Access and other legacy system
Web Services Infrastructure
Failure/Event Chaining and Routing
Compatible with PDA's
Voice Enabled Failure Reporting
Advanced Query Engine for user defined reports

FavoWeb FRACAS Modules:
Failure Reporting/Failure data collection
Corrective / Preventive Action Module
Dashboard Module
Alerts/Notifications Module
System / Serial Number Traceability Module
Warranty Module

Corrective / Preventive Action Module
FavoWeb FRACAS system supports a full scale corrective/preventive action.
Each individual event/incident/Non conformance or failure within the database can be associated ("connected") to a certain issue.
Issues are defined a systematic problem of repeated events or event with substantial impact, which requires an investigation and implementation of corrective action.
FavoWeb FRACAS System supports 8D methodology in its investigation protocol into issue's root cause.

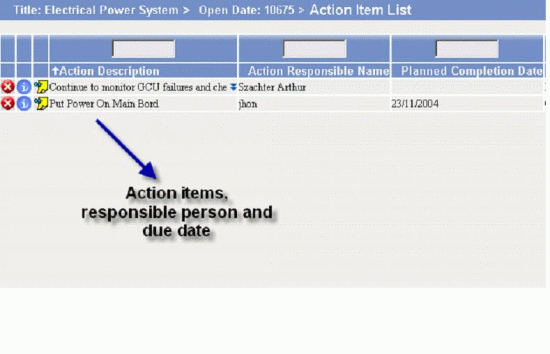

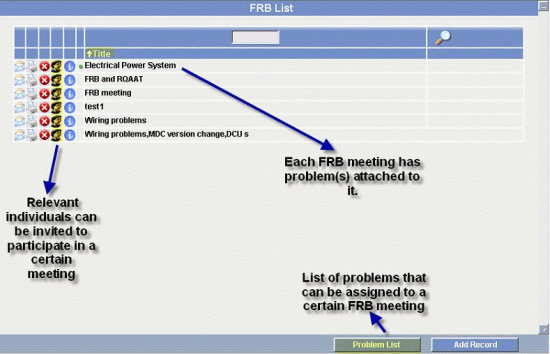

By utilizing FavoWeb's Corrective Action module, the user can invite participations to the FRB/MRB meeting, list issues for discussion, assign action items and follow up on Corrective/Preventive Action implementation and effectiveness.





Dashboard Module

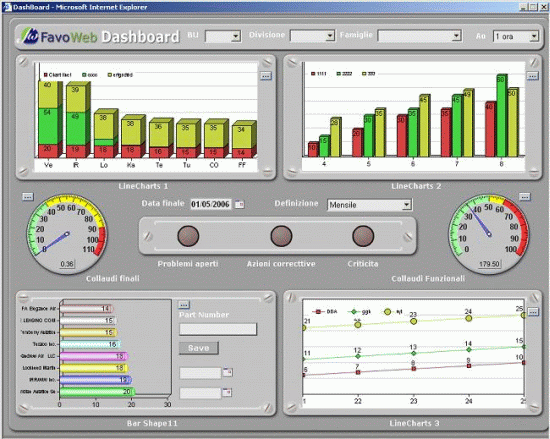

The Dashboard is a graphic analytical presentation of reports, metrics, status levels etc.
This interactive tool allows the authorized users to view concise real-time information such as trend analysis, failure distribution / pareto, MTBF level and correlations.
FavoWeb Dashboard helps decision makers to analyze trends, safety, availability, system status and grasp more than one dimension in one look.
The tool's "drill down" capabilities allow the user to look/investigate metrics and data outputs.
The module is customizable and therefore can be tailored according to customer's specifications.
FavoWeb is well integrated with existing OLAP based tools (both SQL Server and Oracle based).

FavoWeb FRACAS Dashboard Features:
•  Flexible management reports view
•  Alerting mechanism
•  One look general view
•  OLAP methodology
•  Implemented on NET. Platform (no ActiveX)



Alerts / Notifications Module
The need to inform, alert or notify relevant individuals is a key element in any failure/incident treatment.

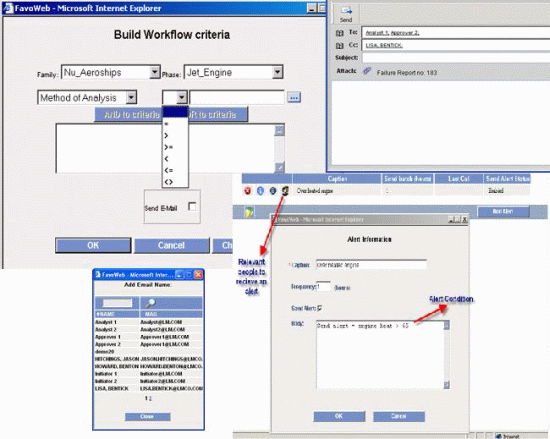

Alert Module enables automated sending of messages to relevant professionals according to pre-defined "trigger points".

Example of such "trigger points" includes (but not limited to):
a. A certain action has been completed or passed on to another person – a relevant notification will reach the appropriate person.
b. The due date of a certain action has passed – the relevant individual will receive an alert message.
c. The condition of a certain tool has reached an "abnormal" level (3 occurrence over a short period of time, or a high/low MTBF level etc.) – an alert will be sent (along with an attachment of the report) to the relevant individuals.
d. An incident has occurred during off-hour in the plant - a message will be sent to alert relevant people.
FavoWeb FRACAS Alerts allows creating an unlimited number of user-defined criteria for alerts and notification issuing.
FavoWeb Alerts Module plays a crucial part in the overall safety and efficiency of any process.



System / SN Traceability Module

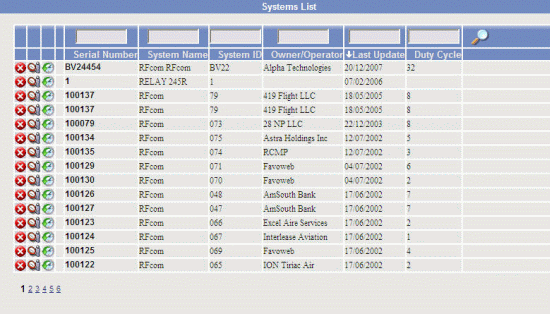

This module allows to define a list of installed systems (units) and maintain a two level configuration management – system level and sub-system level.
All installed systems and sub-systems can be recorded with their respective serial numbers and LRU assemblies.

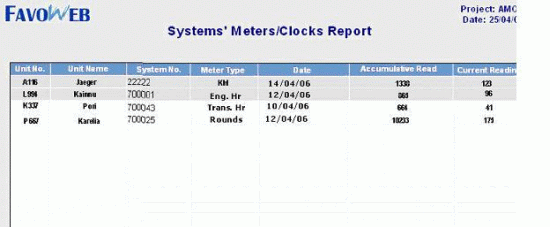

The module allows for systems usage data (clocks / meters) to be defined and their readings to be collected for future analysis over a certain timeline or usage metric (engine hours, Km, transition hrs., operation hours etc.). This information is crucial for accurate reliability calculations such as MTBF, Reliability Growth etc.
The module also serves for tracing an installation history of each serial number/system.
System and sub system information can be entered manually through FavoWeb GUI or imported form external database.






Warranty Module of FRACAS

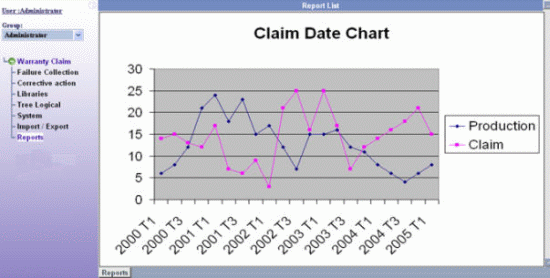

The warranty claim database aims to preserve history of the warranty returns and to carry out some requests in order to realize statistical analysis which will be part of Quality studies or will be taken into account during new parts design.
Most analysis is based on Weibull distributions.
The warranty claim database is a key tool in the deployment of a warranty plan/policy, which examines extended warranty scenarios.

Main Functions
•  Preserve an history of the warranty returns
•  Make analysis to predict failure trends (Weibull curves) with associated costs
•  Compare analysis made on different products, in different countries
•  Have reliable quality data to be used as references for the development of new technologies
•  Improve and simplify the management of warranty data towards customers or suppliers
•  Trace action plan to solve the warranty problems
•  Improve the reporting streamlining and cross information analysis
•  Support the deployment of the ”Reliability” culture in the organization



See FRACAS Web Demo.
